Modes of Operation

4 - Norm (Air / Nitrox) Gauge, and Free Dive

# of Gases

3

Push Buttons

2

User Interface

Click forward, Fast Scroll

Mounting Options

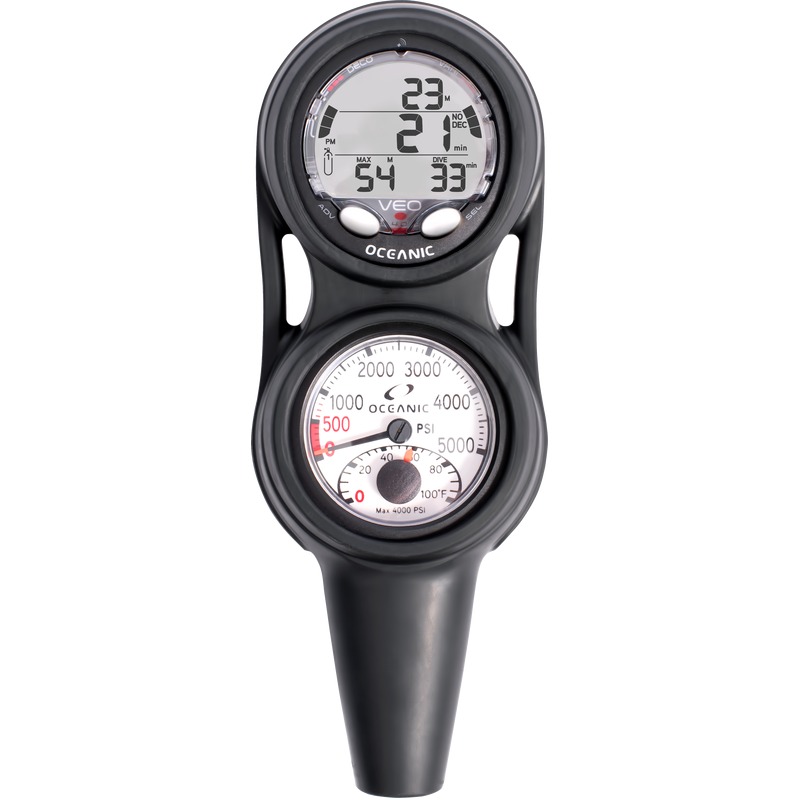

"Hockey Puck" Module, Wrist, 2 and 3 Gauge Consoles

Activation

Water or Push Button

Algorithm Basis

Dual Algorithm™

Your choice between Pelagic DSAT (Spencer/Powell data basis) or Pelagic Z+ (Buhlmann ZHL-16C data basis)

Personal Conservative Factor Adjustment

Each Level provides No Decompression Limits for the next dive +3000 ft altitude

Altitude Algorithm Basis

NOAA

O2 Limit Basis

NOAA

Tissue Compartments

12 (5 to 480 minutes)

Automatic Altitude Adjustment

2,000 - 14,000 ft / 610 - 4200 m

Decompression Capability

10 - 60 ft (3-18 m)

Deep Stop

OPTIONAL - :02 COUNtdOWN TIMER AT 1/2 MAX DEPTH FOR DIVES DEEPER THAN 80 ft/25m

Automatic Safety Stop Prompt

YES - ADJUSTABLE DEPTH AND TIME

Audible Alarm

YES - MAY BE DEACTIVATED AND/OR CUSTOMIZED BY USER

Alarm Acknowledgment (U/W Deactivation)

YES - PUSH BUTTON DEACTIVATES CURRENT ALARM

Ascent Rate Range

 3,35 - 9 m/min -6,4 -18 m/min

Ascent Rate Maximum

30 fpm (

60 fpm (>60 ft)   /  18 m/min (>18m)

SmartGlo Backlight

YES - ADJUSTABLE DURATION

Diver Replaceable Batteries

YES

Battery Type

CR2450

Battery Life

300 DIVE HOURS

Data Retention (retains calculations indefinitely during battery change)

YES

Low Battery Indicator (Graphic)

YES

Calendar / Clock

DATE & TIME

Operating Depth (NORM/FREE)

330 ft / 100 m

Operating Depth (GAUGE)

399 ft / 120 m
